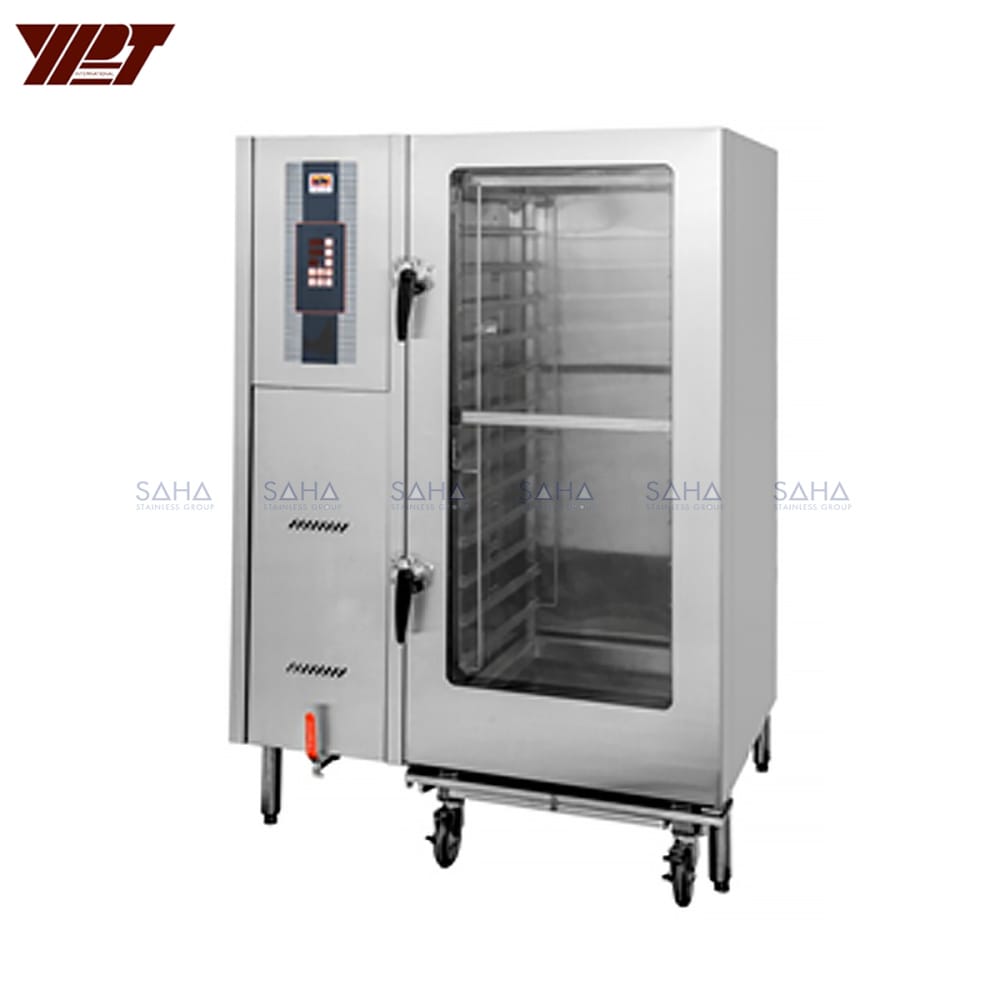

YPT – Flame-Mate 2.0 – Roll-In Steam Cabinet – ESC-1RC
YPT – Flame-Mate 2.0 – Roll-In Steam Cabinet – ESC-1RC
- Environmental Steam Cabinet, Roll-In Steam Cabinet
รายละเอียดเพิ่มเติม
SPECIFICATIONS |
|
Function |
– Superheated steam function (130℃) for special cooking purpose |
Form |
– 1250 width x 880 depth x 1800 height mm |
Construction |
– Insulated flue-tube heat exchanger with AISI444 for high efficiency of steam generation
– One push button for flame failure device, blower and ignition – Metal framework is made of AISI 304 stainless steel – Double door lock to prevent steam leakage – 6” bullet feet with 1.5” drainage valve at bottom for preventing overnight storage of water inside heat exchanger – Digital control panel for menu and superheat steam function – Double insulated glass door |
Engineering/ MEP ratings |
– Type of Gas: LPG / NG / Town Gas, specify when ordering
– Gas power: 50kW, at 0.5 psi – Gas connection size: DN25 – Water supply connection size: DN15 – Water drainage connection size: DN40 -Electrical connection for blower: 220V/SPN/50Hz/3050W |
Capacity |
– 13 levels trolley (for GN 2/1 Pan) |
Sanitation |
– Removable perforated drainage for hygiene.
– Accessible boiler tank at bottom of chamber for de-limescale process |
Accessories |
– Extra trolley
– GN Pan (Either GN 2/1 or 1/1) |
Safety |
– Electromagnetic valve with instant gas cut off (<3s)
– Water level detection and overheat protection |
Special Requirements |
– Recommended to install water filter and water softener (especially for HARD water zone) to prevent limescale formation. Please check with KEC for details |
Option |
– Gas Regulator (recommended) |
ข้อมูลเพิ่มเติม
Brand | YPT |
---|
