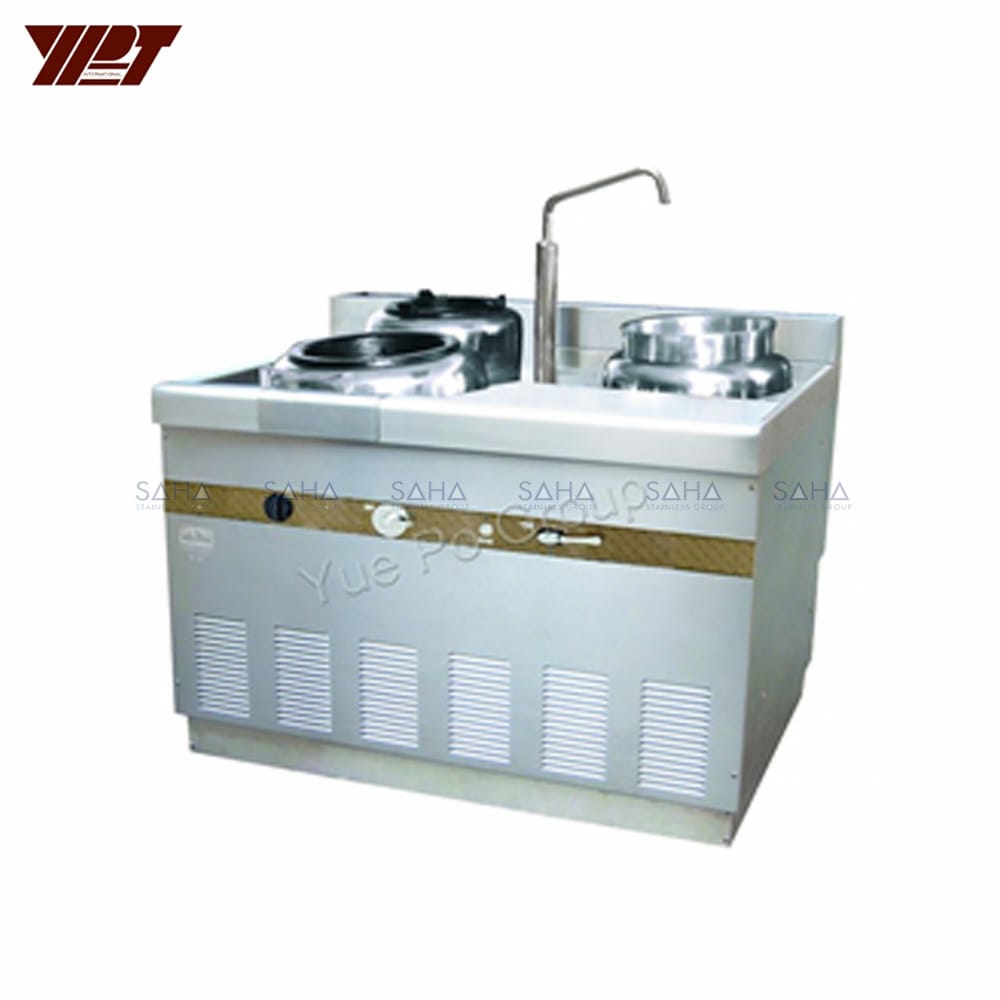

YPT – Flame-Mate 2.0 – 2 Ring Burner – Shanghai Style – ECR-1-PF(E)5
YPT – Flame-Mate 2.0 – 2 Ring Burner – Shanghai Style – ECR-1-PF(E)5
- Environmental Cooking Range, Open Kitchen Type – Shanghai Style – 1 Ring
รายละเอียดเพิ่มเติม
| SPECIFICATIONS | |
| Function | – Fast stir-frying, batch cooking and Shanghai style cook.
– For Front of House usage |
| Form | – 1400 width x 1050 depth x (810 + 100 backsplash) height in mm |
| Construction | – Equip with patented 5” pre-mixing burner with dia 130mm heat zone, operational noise < 70dB(A)
– 6” mandarin rear burner – One push button for flame failure device, blower and ignition – One-piece molded clay burner chamber – Metal framework is made of AISI 304 stainless steel – Insulation underneath tabletop – 1 nos of swivel faucet mounted on deck |
| Engineering/MEP ratings | – Type of Gas: LPG / NG / Town Gas, specify when ordering
– Gas power: 48kW + 5kW = 53kW, at 0.5 psi – Gas connection size: DN20 – Water supply connection size: DN15 – Water drainage connection size: DN40 – Electrical connection for blower: 220V/SPN/50Hz/130W |
| Capacity | – Inner Dia 13” cast iron ring for 16” – 20” wok
– Dia. 9” Rear pot for water storage |
| Sanitation | – Extruded seamless table top
– Removable perforated drainage for hygiene. |
| Accessories | – Wok stand (Standard)
– Basket holder (Standard) – Cold water pan (Standard) |
| Safety | – Electromagnetic valve with instant gas cut off (<3s)
– Extra width exhaust with cover design for reduction of CO |
| Option | – Gas regulator (recommended)
– Plinth base version is available upon request. Standard model comes with bullet feet only |
ข้อมูลเพิ่มเติม
| Brand | YPT |
|---|
