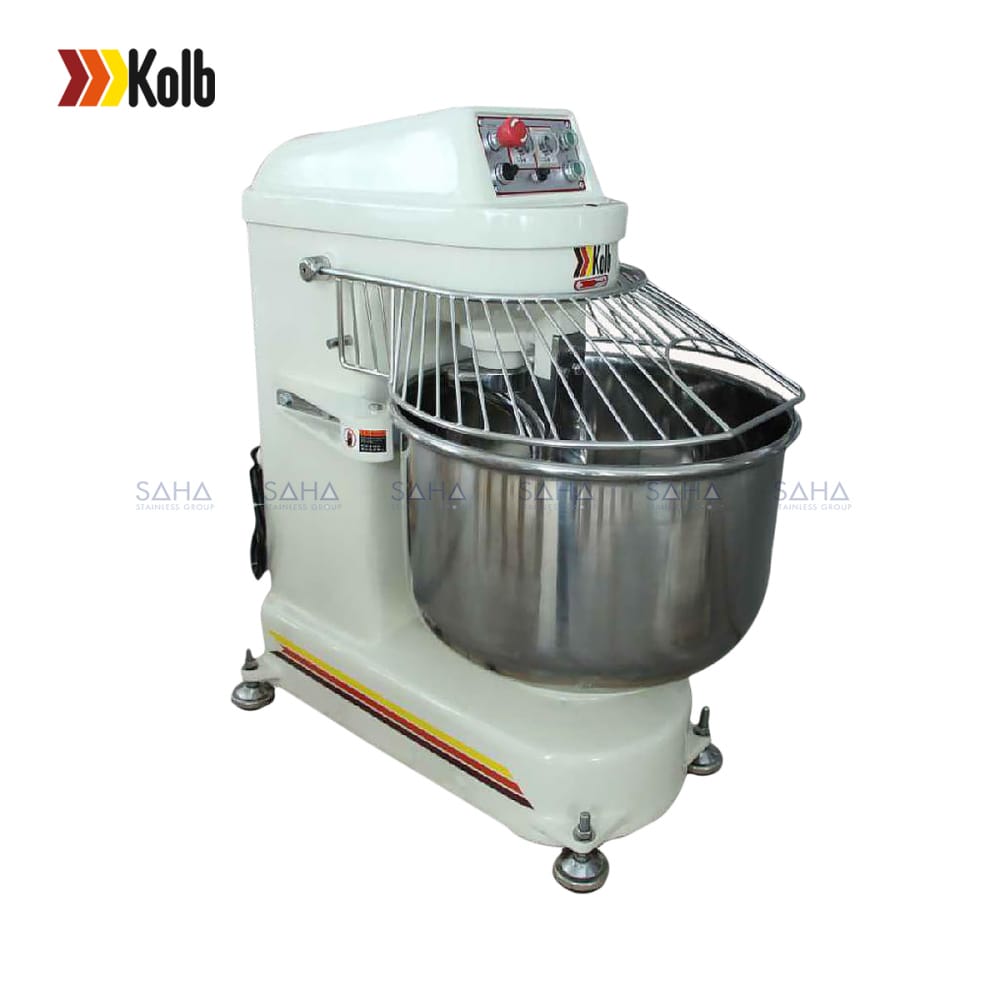

Kolb – Spiral Mixer – 50Kg – K32-0501AB4

Kolb – Spiral Mixer – 50Kg – K32-0501AB4

KOLB Spiral Mixer is designed especially for heavy doughs for mass production in large hotels, bakeries and food factories. The Spiral Mixer employs different mixing methods including kneading, twisting and pinching, to enable the baker to prepare the ideal dough.

Product Advantage

  • Dual motors to control spiral arm and mixing bowl respectively
  • Mixing bowl may be set to rotate either forward or backward
  • Gear driven with 2-speed mixing
  • Spiral arm and mixing bowl are designed with a perfect driving fit, even
  • a small volume of dough can be handled
  • Overload relay to protect motor and transmission components
  • Interlocked bowl guard switch for safe operation
  • Models available(weight of dough): 20kg / 40kg / 50kg / 80kg / 120kg / 150kg



รายละเอียดเพิ่มเติม

Technical Data

Product Model K32-0201AB4 K32-0401AB4 K32-0501AB4 K32-0801AB4
Dimensions
WxDxH(mm)
501x833x966
/1230
545x907x1029
/1414
590x950x1050
/1439
714x1140x1225
/1714
Flour Capacity
(kg)
12kg 25kg 30kg 50kg
Dough Capacity
(kg)
20kg 40kg 50kg 80kg
Voltage 380-400V, 50Hz, 3N, PE
Power 1.375kW 2.25kW 3kW 5.25kW



ข้อมูลเพิ่มเติม

Brand

Kolb
