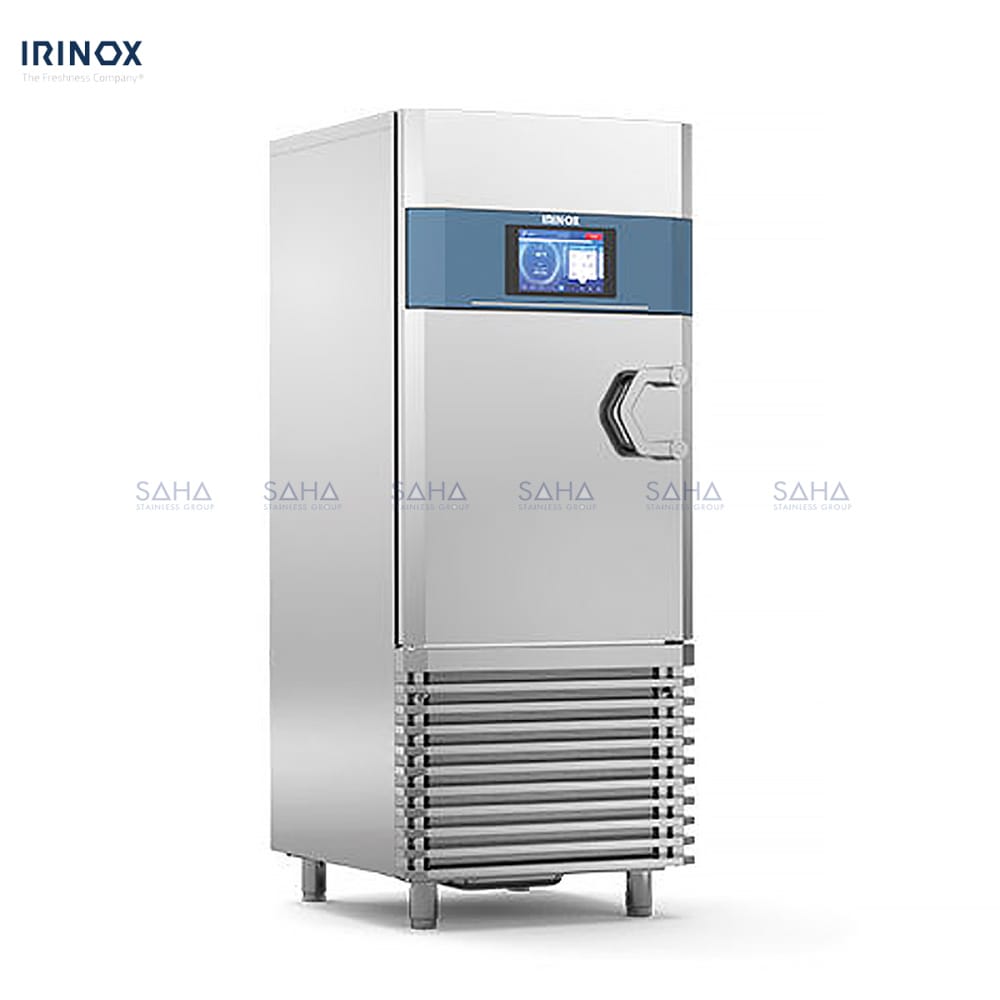

Irinox – Blast Chillers – MultiFresh Next – L

Features

Sanigen

• The Irinox patented sanification system, sanitizes every part of the chamber, including the areas that are difficult to access for cleaning (e.g. the evaporator, etc.)

Multirack

• The exclusive adjustable tray rack by Irinox is used to alter the distance between trays every 20 mm, according to the thickness of the food, and to exploit the entire yield in kg of MultiFresh.

HACCP

• HACCP (Hazard-Analysis and Control of Critical Points) is the protocol that regulates and prevents food contamination. It establishes and implements the monitoring of the Critical Control Points in order to reduce and prevent identified hazards.

MultiSensor

• The MultiFresh blast chiller is supplied with a MultiSensor 5 point probe for perfect temperature control.

Technical Specifications

Capacity

• Tray height 65 mm GN1/1 – 600×400 > 13
• Tray height 40 mm GN1/1 – 600×400 > 18
• Tray height 20 mm GN1/1 – 600×400 > 27

Dimensions

• Width 790 mm
• Depth 1015 mm
• Height 1965 mm
• Weight 205 Kg (240kg TU/TS)

Electrical Data

• Max absorbed power 07 kW Standard/Eco Silent
• Max absorbed current 13.95 A Standard/Eco Silent
• Voltage 400V-3N+PE 50Hz

Yield Per Cycle

• from +90°C to +3°C 70 Kg Standard/Eco Silent (+30% TU/TS)
• from +90°C to -18°C 70 Kg Standard/Eco Silent
