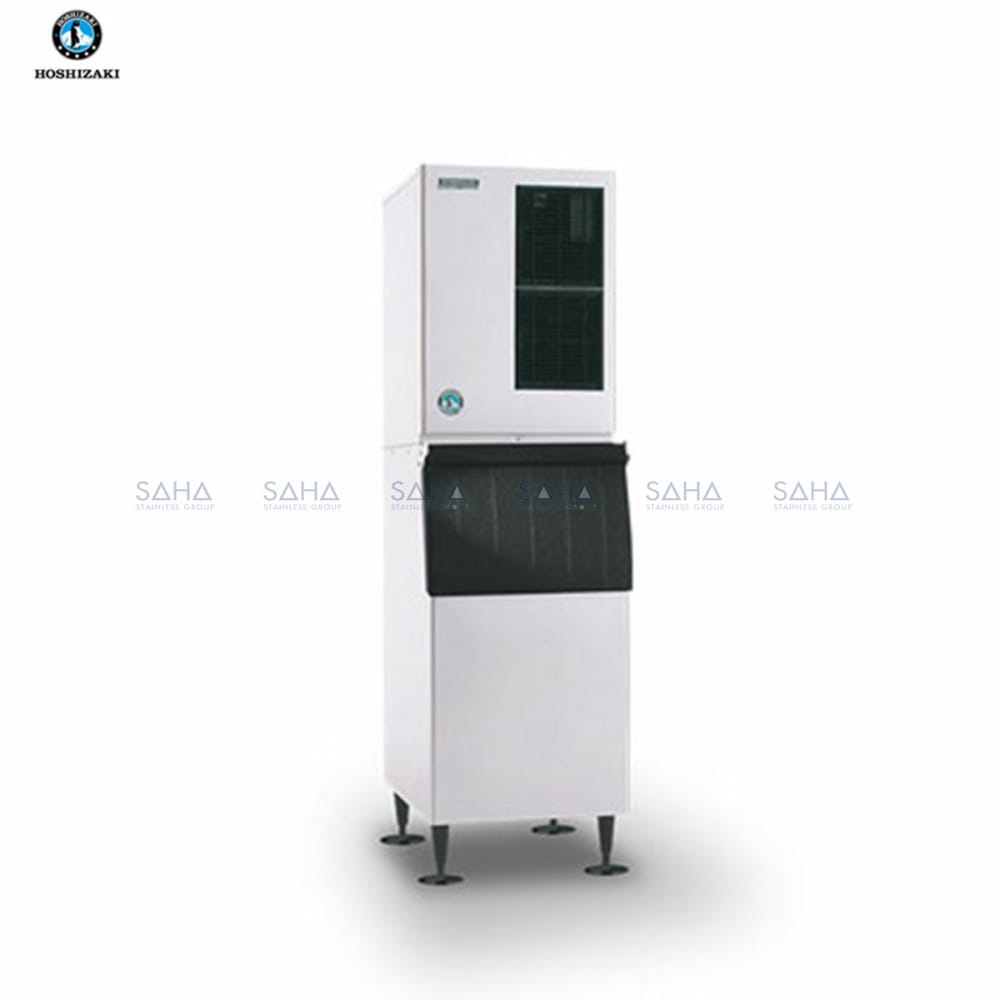

Hoshizaki – Ice Machine – KM-515MAH-E

Hoshizaki KM-515MAH-E Crescent Ice Maker

DAILY ICE PRODUCTION CAPACITY OF UP TO 230KG



  Download Data Sheet

Compare
Add to wishlist
SKU: KM-515MAH-E Categories: , Tags: , , , , , , , ,
Description



DIMENSIONS (WxDxH):  560 x 695 x 770 mm

WEIGHT (NETT/GROSS): 79 kg

AMPERAGE / STARTING AMPERAGE: 7.14A

ELECTRICAL CONSUMPTION: 7.1

REFRIGERANT CHARGE: R404a



OPERATING CONDITIONS: • Voltage Range:198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50Hz



ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)             233 KG

(AT21°C/WT15°C)             200 KG

(AT32°C/WT21°C)             185 KG



WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.41 m3

2.2L / 1KG ICE



ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         36 MIN

PER CYCLE           4.6 KG / 480 PCS
