Hoshizaki – Ice Machine – KM-125A

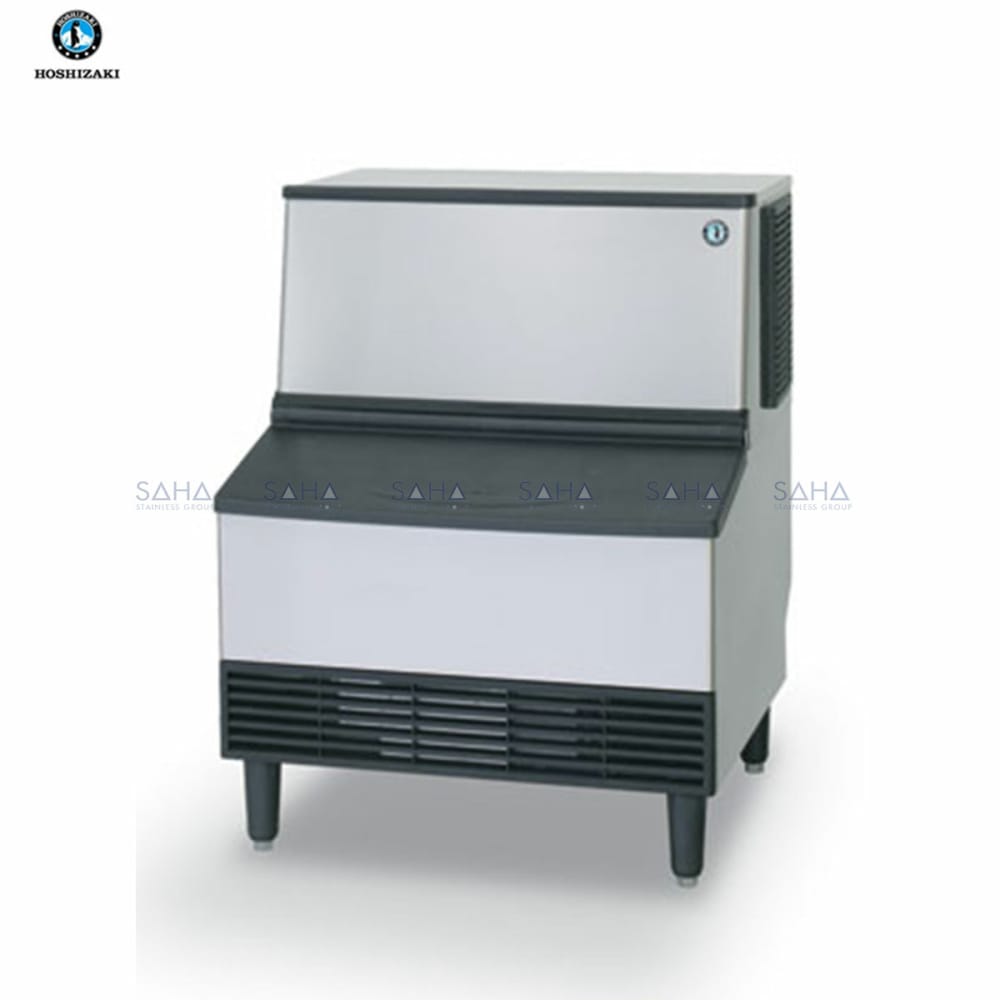

Hoshizaki KM-125A Crescent Ice Maker

DAILY ICE PRODUCTION CAPACITY OF UP TO 128KG



รายละเอียดเพิ่มเติม



DIMENSIONS (WxDxH):  Body : 762 x 712 x 840 mm / Leg Height: 152mm

PACKED DIMENSIONS (WxDxH):  845 x 800 x 955 mm

WEIGHT (NETT/GROSS): 70 KG / 85 KG

AMPERAGE / STARTING AMPERAGE: 4.5A / 19A

ELECTRICAL CONSUMPTION: 774 W

REFRIGERANT CHARGE: R404a

HEAT REJECTION (AT32°C/WT21°C): 1650W (1420 kcal/h)

STORAGE CAPACITY: 55 KG



OPERATING CONDITIONS: • Voltage Range:198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50Hz



ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)             128 KG

(AT21°C/WT15°C)             115 KG

(AT32°C/WT21°C)             102 KG



WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.40 m3

3.5L / 1KG ICE



ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         24 MIN

PER CYCLE           2.1 KG / 238 PCS

ข้อมูลเพิ่มเติม

Brand

HOSHIZAKI
