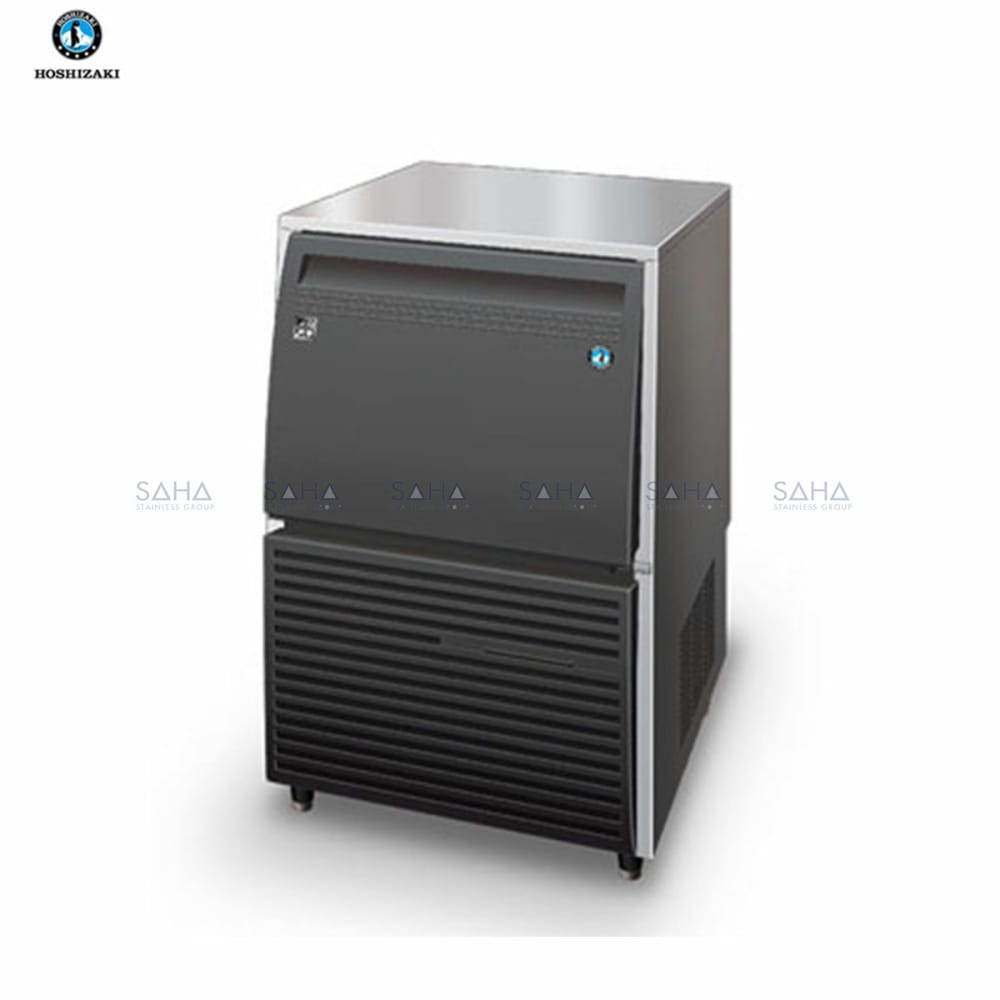

Hoshizaki – Ice Machine – IM-65A

รายละเอียดเพิ่มเติม



DIMENSIONS (WxDxH):  Body : 660 x 570 x 800 mm / Leg Height : 90-120 mm

PACKED DIMENSIONS  (WxDxH): 760 x 680 x 880 mm

WEIGHT (NETT/GROSS): 60 KG / 74 KG

AMPERAGE / STARTING AMPERAGE: 3.2A / 18A

ELECTRICAL CONSUMPTION: 390 W

REFRIGERANT CHARGE: R134a

HEAT REJECTION (AT32°C/WT21°C): 910 W (783 kcal/h)

STORAGE CAPACITY: 26 KG



OPERATING CONDITIONS: • Voltage Range: ±6% • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz



ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)             70 KG

(AT21°C/WT15°C)             62 KG

(AT32°C/WT21°C)             49 KG



WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.14 m3

2.25L / 1KG ICE



ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         26 MIN

PER CYCLE           0.94 KG / 42 PCS
