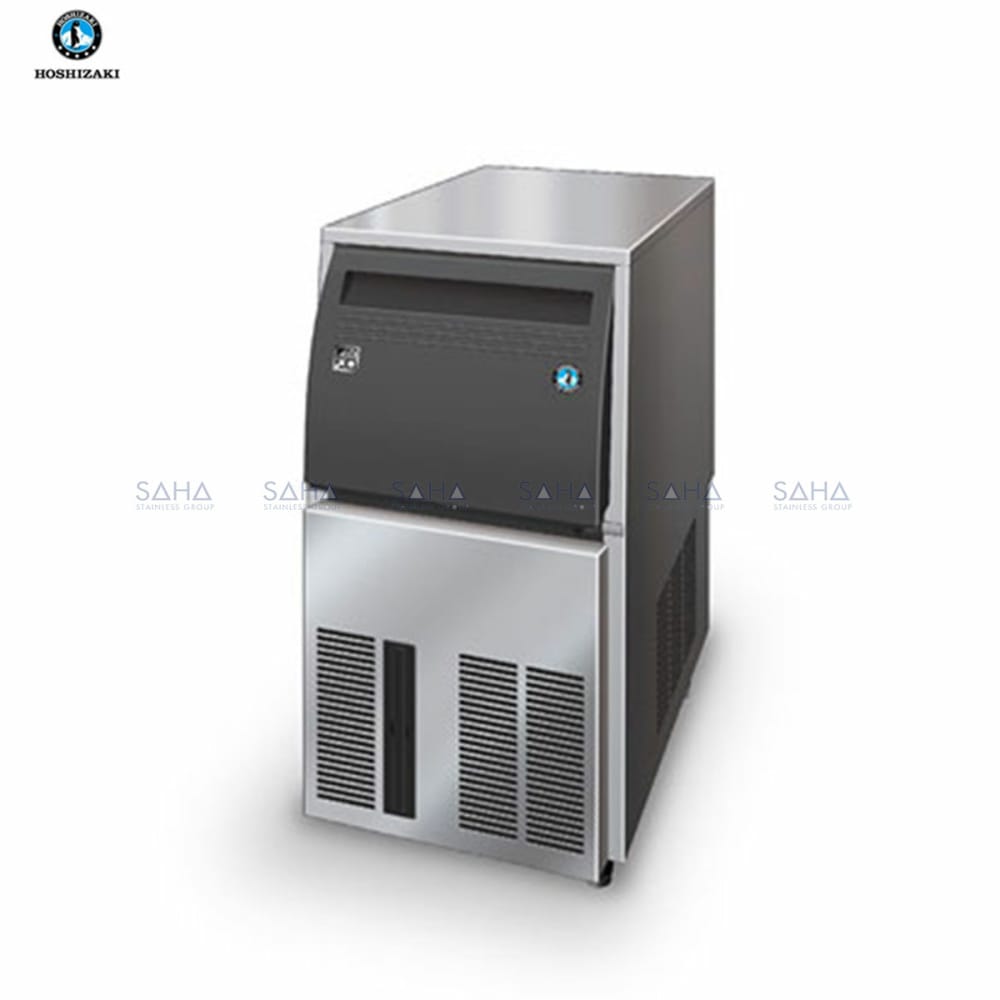

Hoshizaki – Ice Machine – IM-30CA

รายละเอียดเพิ่มเติม



DIMENSIONS (WxDxH):  Body : 398 x 510 x 695 mm / Leg Height : 90-120 mm

PACKED DIMENSIONS  (WxDxH): 490 x 610 x 880 mm

WEIGHT (NETT/GROSS): 39 KG / 49 KG

AMPERAGE / STARTING AMPERAGE: 1.7A / 9A

ELECTRICAL CONSUMPTION: 250 W

REFRIGERANT CHARGE: R134a

HEAT REJECTION (AT32°C/WT21°C): 520 W (447 kcal/h)

STORAGE CAPACITY: 12 KG



OPERATING CONDITIONS: • Voltage Range: ±6% • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz



ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)             30 KG

(AT21°C/WT15°C)             28 KG

(AT32°C/WT21°C)             25 KG



WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.07 m3

2.5L / 1KG ICE



ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         21 MIN

PER CYCLE           0.4 KG / 18 PCS
