HOSHIZAKI

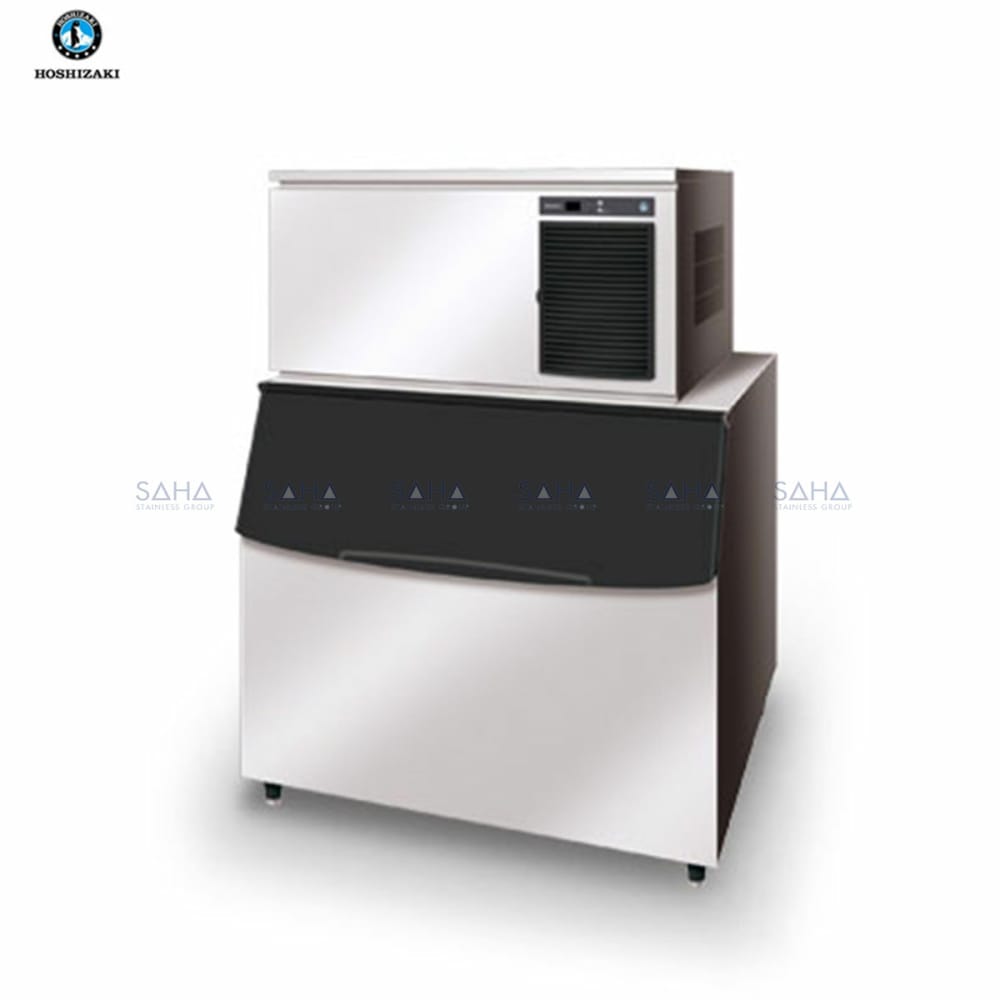

Hoshizaki – Ice Machine – IM-240DNE

Hoshizaki IM-240DNE Cube Ice Maker

DAILY ICE PRODUCTION CAPACITY OF UP TO 240KG

  Download Data Sheet

Compare
Add to wishlist
SKU: IM-240DNE Categories: , Tags: , , , , , , , ,
Description



DIMENSIONS (WxDxH):  1084 x 700 x 500 mm

PACKED DIMENSIONS  (WxDxH): 1196 x 825 x 640 mm

WEIGHT (NETT/GROSS): 88 KG / 106 KG

AMPERAGE / STARTING AMPERAGE: 6.6A / 35A

ELECTRICAL CONSUMPTION: 1330 W

REFRIGERANT CHARGE: R404a

HEAT REJECTION (AT32°C/WT21°C): 2870 W (2470 kcal/h)



OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz*60Hz units are available upon request



ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)               240 KG

(AT21°C/WT15°C)               230 KG

(AT32°C/WT21°C)               210 KG



WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.38 m3

1.7L / 1KG ICE



ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         18 MIN

PER CYCLE           3.2 KG / 140 PCS
