Product Features

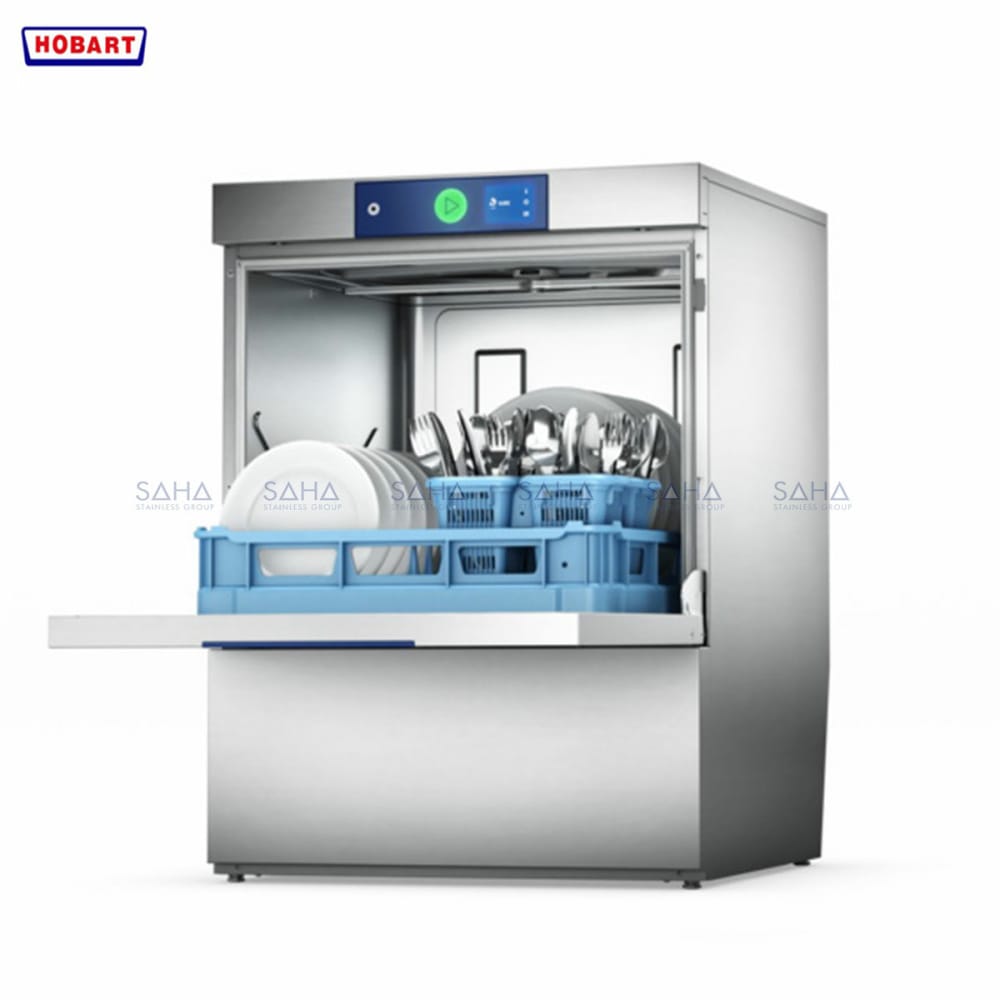

- Front door glass and dishwasher with optional double rack system
- Nominal capacity up to 40 racks/h or 720 plates/h or 1,440 glasses/h
- Nominal capacity with double rack: up to 80 racks/h (40 plate racks + 40 glass/cup racks)
- 6 automatic cycles: short, standard, water X-change, STARCH-REMOVAL, permanent, hygiene
- Smooth counterbalanced door with closing mechanism
- Ready to install – completely equipped: fill / drain hose, power cord (400 V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump, back-flow preventer
- Tank, frame, rinse arm and panels are stainless steel 4301
- Integrated WiFi module
Technical Data
- Cycle times* 90 / 180 / 360 and special cycles
- Water consumption 2 l/rack
- Tank capacity 6 l
- Tank heating 7 kW
- Power supply 400 / 50 / 3N (230 / 50 / 1)
- Booster loading – Standard 2 kW
- Booster loading – Standard 1 kW
- Total loading – Standard 8 kW | 3 x 16 A
- Total loading – Alternative 7 kW | 16 A
- Wash pump 5 kW | 350 l/min
- Rack size 500 x 500 |500 x 530 mm
- Loading height 425 mm
- Noise level 5 dB (A)
- Weight (gross / net) 70 / 60 kg
- Thermostop guarantees required temperatures with cold water and / or 230 V connection, the actual cycle times extend accordingly.
- For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT.
- To avoid spots and streaks on the wash ware, we recommend the usage of an demineralisation cartridge
- (HYDROLINE STAR / STAR EXTRA) or a reverse osmosis system HYDROLINE PURE.
